Overview

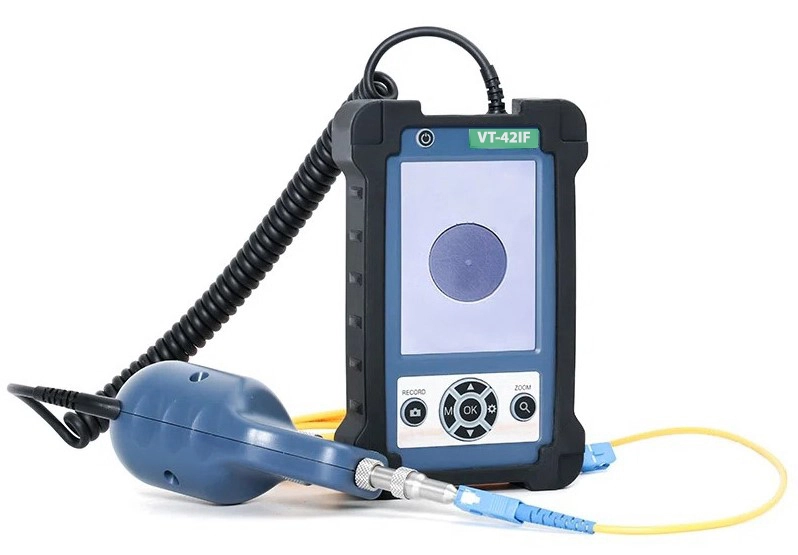

The VT-42IF is a visual inspection system for fiber optic connector end faces, suitable for installation technicians, network maintenance teams, and laboratory inspection.
With 400× magnification and a 3.5-inch LCD, the probe helps users examine contamination and end-face condition before making a connection. Its handheld design, built-in battery, and image storage capabilities support convenient field inspection.
Feature
-
400× magnification: Helps users examine contamination on fiber connector end faces.
-
3.5-inch LCD: Displays live images from the probe for on-site inspection.
-
Multiple connector interfaces: Supports SC, FC, ST, and LC connectors, plus inspection inside SC/LC adapter ports using suitable tips.
-
Real-time video: Allows users to monitor connector surfaces during inspection.
-
TF/microSD storage: Supports saving images and video for later review.
-
4,000 mAh lithium battery: Up to 20 hours of standby time according to the documentation.
-
Convenient construction: A rotating metal stand and removable silicone cover support flexible use and help reduce impact damage.
Specifications
| Item |
Specification |
| Model |
VT-42IF |
| Device type |
Fiber optic connector inspection system |
| Magnification |
400× |
| Display |
3.5-inch LCD |
| LCD resolution |
960 × 240 |
| Sensor size |
1/3 inch |
| Pixel count |
307,200 pixels |
| Frame rate |
25 fps |
| Video output mode |
NTSC/PAL |
| Video playback format |
AVI |
| Memory card |
TF/microSD, 8 GB capacity listed in the documentation |
| Storage format |
FAT32 |
| USB interface |
USB 1.1/2.0 |
| Adapter power output |
DC 5 V/2 A |
| Built-in battery |
4,000 mAh lithium battery |
| Standby time |
Up to 20 hours according to the documentation |
| Supported interfaces |
SC, FC, ST, LC; SC/LC adapter ports with suitable inspection tips |
