Overview

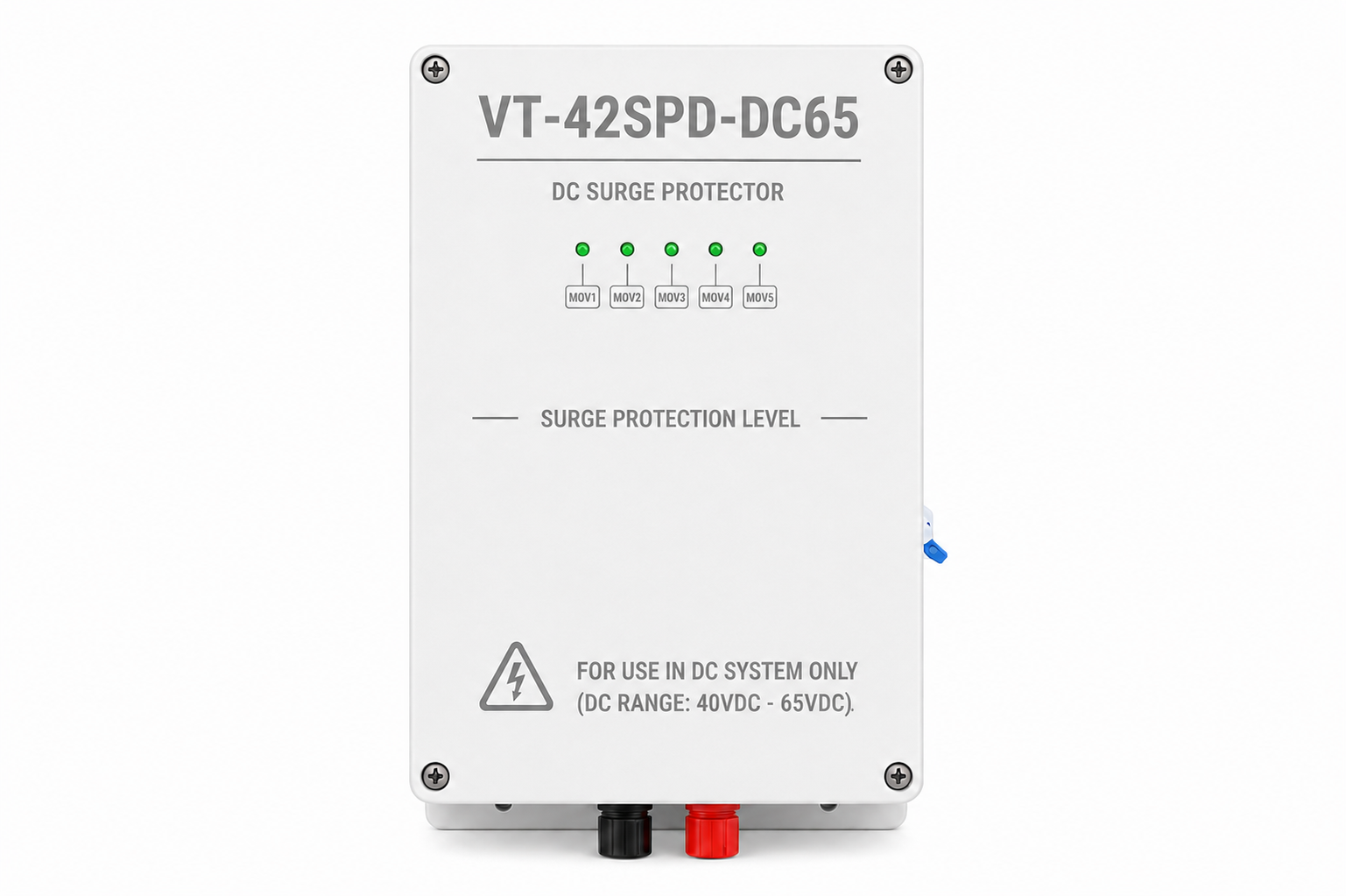

The VT-42SPD-DC65 is designed to protect 40–65 VDC power systems against transient overvoltages caused by lightning-induced surges or equipment switching.
With a nominal voltage of 48 VDC, it is suitable for DC power cabinets in telecommunications, data centers, and industrial control systems. Its wall-mounted design, integrated circuit breaker, and status indicators support convenient monitoring, operation, and maintenance.
Feature
-
Type 2 DC surge protection: Helps protect sensitive electronic equipment against transient overvoltages.
-
160 kA maximum discharge current: Specified for an 8/20 µs test waveform.
-
Response time below 25 ns: As stated in the product documentation.
-
Five MOV status LEDs: Monitor MOV1–MOV5. An illuminated LED indicates normal operation; an unlit LED indicates a fault or disconnection.
-
Integrated 63 A circuit breaker: Provides power switching for the surge protection device during operation and maintenance.
-
Replaceable modules: Support convenient servicing.
-
IP54 enclosure: Compact construction for wall mounting.
Specifications
| Item |
Specification |
| Model |
VT-42SPD-DC65 |
| Protection type |
Type 2 DC SPD |
| Protected DC voltage range |
40–65 VDC |
| Nominal voltage (Un) |
48 VDC |
| Maximum continuous operating voltage (Uc) |
65 VDC |
| Varistor voltage at 1 mA (Vn) |
100 V; range 85–110 V |
| Nominal discharge current (In) |
50 kA/stage, 8/20 µs waveform |
| Maximum discharge current (Imax) |
160 kA, 8/20 µs waveform |
| Maximum clamping voltage (Up) |
165 V at Ip = 1.5 kA |
| Maximum energy absorption |
1,000 J |
| Response time |
< 25 ns |
| Integrated circuit breaker |
1 × 63 A circuit breaker |
| Thermal disconnection protection |
Fuse + circuit breaker |
| Status indication |
Five LED levels; each represents 20% capacity according to the documentation |
| Ingress protection |
IP54 |
| Mounting method |
Wall mounting |
| Operating temperature |
−40 to +85°C |
| Ambient humidity |
0–95%, non-condensing |
| Applicable standards listed in documentation |
IEC 61643-31, IEC 60529 |
| Dimensions (W × H × D) |
135 × 240 × 75 mm |
| Weight |
0.7 kg |
Product Documentation
