Overview

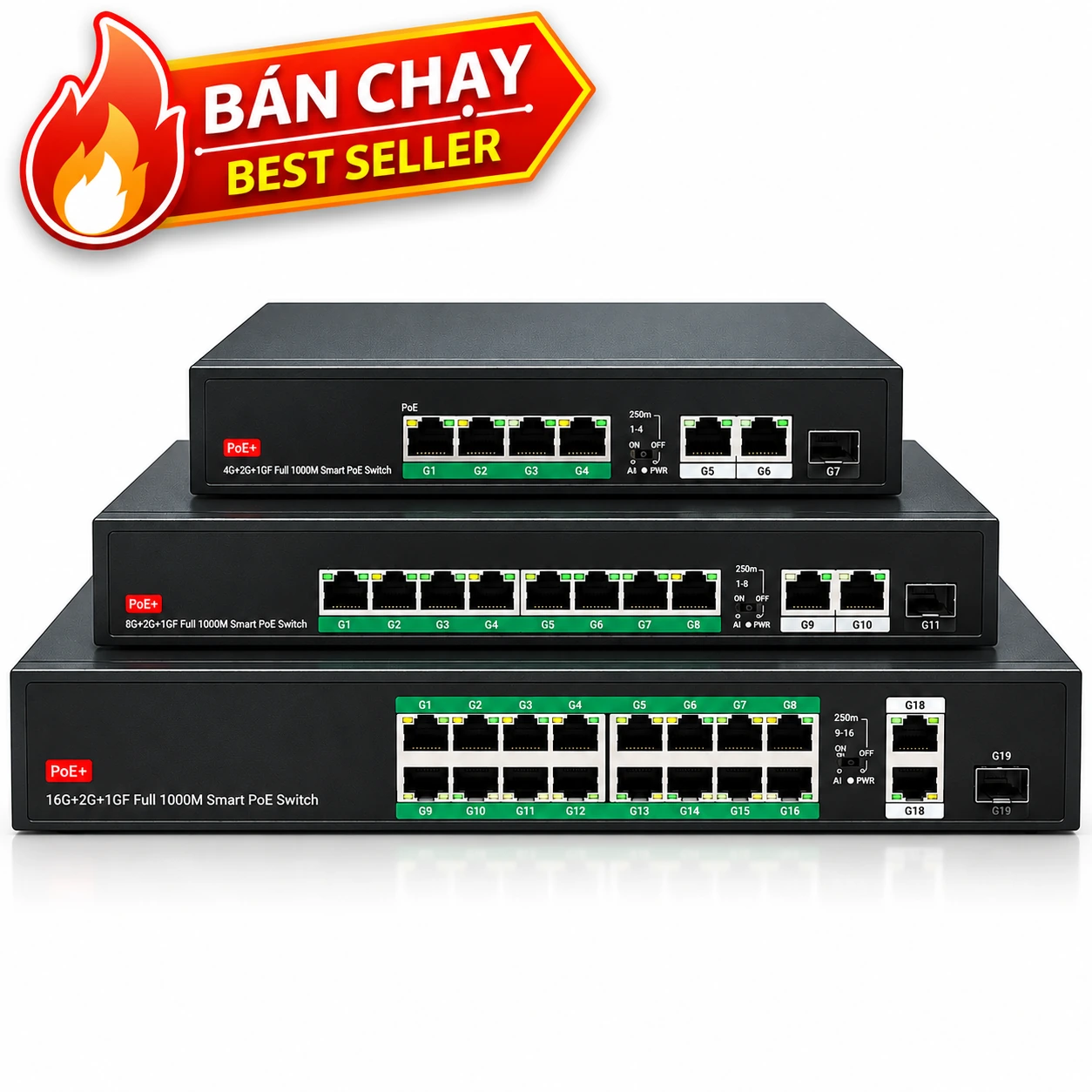

The 3064PFD, 3108PFD and 3016PFD Gigabit PoE Switches are full Gigabit network switches with integrated PoE+ power delivery, designed for IP cameras, wireless access points, VoIP phones, access control systems and other PoE network devices.
The switches support 10/100/1000Mbps Ethernet and IEEE 802.3af/at PoE+, providing up to 30W per PoE port. Each model features Gigabit RJ45 uplink ports and a 1000Base-X SFP fiber uplink, providing flexible connectivity for different network deployments.
Feature
- Full Gigabit Ethernet: 10/100/1000Mbps.
- IEEE 802.3af/at PoE+.
- Up to 30W PoE power per port.
- Gigabit RJ45 uplink ports.
- 1000Base-X SFP fiber uplink.
- PoE Watchdog for automatic PoE device recovery.
- Long Distance Mode up to 250m at 10Mbps on supported ports.
- VLAN isolation on supported models.
- Full wire-speed forwarding.
- Plug & Play operation.
- Up to 4kV surge protection.
- Metal housing for reliable operation.
Specifications
| Specification |
3064PFD |
3108PFD |
3016PFD |
| Total Ports |
7 |
11 |
19 |
| PoE Ports |
4 × RJ45 |
8 × RJ45 |
16 × RJ45 |
| RJ45 Uplink |
2 × Gigabit |
2 × Gigabit |
2 × Gigabit |
| SFP Uplink |
1 × 1000Base-X |
1 × 1000Base-X |
1 × 1000Base-X |
| Ethernet Speed |
10/100/1000Mbps |
10/100/1000Mbps |
10/100/1000Mbps |
| PoE Standard |
IEEE 802.3af/at |
IEEE 802.3af/at |
IEEE 802.3af/at |
| PoE Power/Port |
30W |
30W |
30W |
| Total PoE Power |
65W |
120W |
250W |
| Switching Capacity |
14Gbps |
22Gbps |
38Gbps |
| Forwarding Rate |
10.4Mpps |
16.37Mpps |
28.28Mpps |
| MAC Address |
2K |
2K |
4K |
| Jumbo Frame |
9.2K |
9.2K |
9.2K |
| Operating Temperature |
-20~55°C |
-20~55°C |
-20~55°C |
| Dimensions |
200 × 130 × 40mm |
200 × 130 × 40mm |
350 × 215 × 44mm |
| Installation |
Desktop/Wall Mount |
Desktop/Wall Mount |
Desktop/Rack Mount |
