Overview

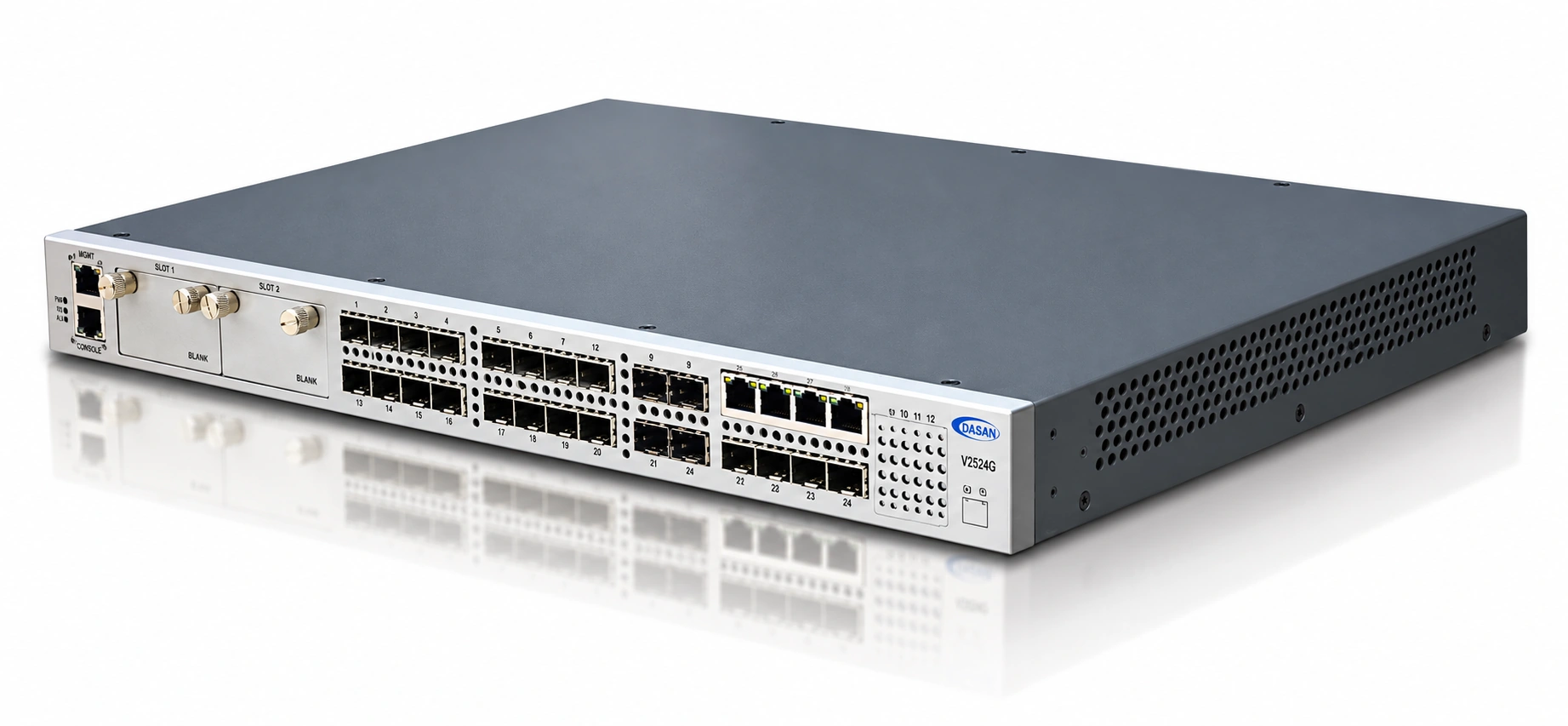

The DASAN V2524G is a Layer 2 Gigabit Ethernet switch designed for access networks and FTTx deployments. It provides 24 service ports, combining SFP fiber interfaces with fiber/copper combo ports to accommodate different network requirements.
With two optional uplink expansion slots, the V2524G supports Ethernet, EPON, or GPON modules. It can operate as a Layer 2 switch or as an MDU/ONU when equipped with a suitable PON module.
Feature
-
Switching performance: 52 Gbps switching capacity and 38.7 Mpps forwarding throughput.
-
Flexible connectivity: 20 × 100/1000Base-X SFP ports and four combo ports, each offering a choice of SFP or RJ45 connectivity.
-
Expandable uplinks: Two optional module slots supporting SFP, GBIC, RJ45, EPON, or GPON interfaces.
-
VLAN management: Supports 4K VLANs through IEEE 802.1Q, VLAN stacking/translation, and Independent VLAN Learning.
-
Network resilience: Supports STP, RSTP, MSTP, IEEE 802.3ad link aggregation, and Ethernet Ring Protection (ERP).
-
Traffic prioritization: Four queues per port, with SP, WRR, and DRR scheduling, plus traffic policing and shaping.
-
Multicast support: IGMP v1/v2/v3, IGMP snooping, and MVR for applications such as IPTV.
-
Access control: ACLs, IEEE 802.1X authentication, DHCP snooping, and storm control.
-
Convenient monitoring: Port mirroring, a dedicated management port, CLI console access, and status LEDs.
Specifications
| Item |
Specification |
| Manufacturer / Model |
DASAN Networks / V2524G |
| Device type |
Layer 2 Gigabit Ethernet switch |
| Dedicated fiber service ports |
20 × 100/1000Base-X SFP |
| Combo ports |
4 × 100/1000Base-X SFP or 10/100/1000Base-T RJ45 |
| Uplink slots |
Two slots, each accommodating one single-port uplink module |
| Uplink options |
100Base-X/1000Base-X SFP, 1000Base-X GBIC, 10/100/1000Base-T RJ45, EPON, GPON |
| PON interfaces |
EPON: SC/PC, 20 km; GPON: SC/APC |
| Switching capacity |
52 Gbps |
| Forwarding throughput |
38.7 Mpps |
| MAC address table |
16K entries |
| VLANs / Jumbo frames |
4K VLANs / 9K |
| Memory |
32 MB Flash; 128 MB SDRAM |
| Management port |
1 × 10/100Base-TX RJ45 |
| Console port |
RS232 with RJ45 connector |
| Power input |
100–240 VAC, 50/60 Hz; single AC power supply |
| Power consumption |
36 W |
| Operating temperature |
−20 to 60°C |
| Storage temperature |
−40 to 70°C |
| Operating humidity |
0–90%, non-condensing |
| Dimensions (W × H × D) |
432 × 43 × 309 mm |
| Weight |
4.15 kg |
| Installation |
Indoor 19-inch rack mounting; fixed cooling fans
| Item |
Specification |
| Manufacturer / Model |
DASAN Networks / V2524G |
| Device type |
Layer 2 Gigabit Ethernet switch |
| Dedicated fiber service ports |
20 × 100/1000Base-X SFP |
| Combo ports |
4 × 100/1000Base-X SFP or 10/100/1000Base-T RJ45 |
| Uplink slots |
Two slots, each accommodating one single-port uplink module |
| Uplink options |
100Base-X/1000Base-X SFP, 1000Base-X GBIC, 10/100/1000Base-T RJ45, EPON, GPON |
| PON interfaces |
EPON: SC/PC, 20 km; GPON: SC/APC |
| Switching capacity |
52 Gbps |
| Forwarding throughput |
38.7 Mpps |
| MAC address table |
16K entries |
| VLANs / Jumbo frames |
4K VLANs / 9K |
| Memory |
32 MB Flash; 128 MB SDRAM |
| Management port |
1 × 10/100Base-TX RJ45 |
| Console port |
RS232 with RJ45 connector |
| Power input |
100–240 VAC, 50/60 Hz; single AC power supply |
| Power consumption |
36 W |
| Operating temperature |
−20 to 60°C |
| Storage temperature |
−40 to 70°C |
| Operating humidity |
0–90%, non-condensing |
| Dimensions (W × H × D) |
432 × 43 × 309 mm |
| Weight |
4.15 kg |
| Installation |
Indoor 19-inch rack mounting; fixed cooling fans |
|
Note: Each combo port uses either its fiber or copper interface at a time. Uplink modules and optical transceivers are optional; please confirm the supplied configuration when ordering.
