Overview

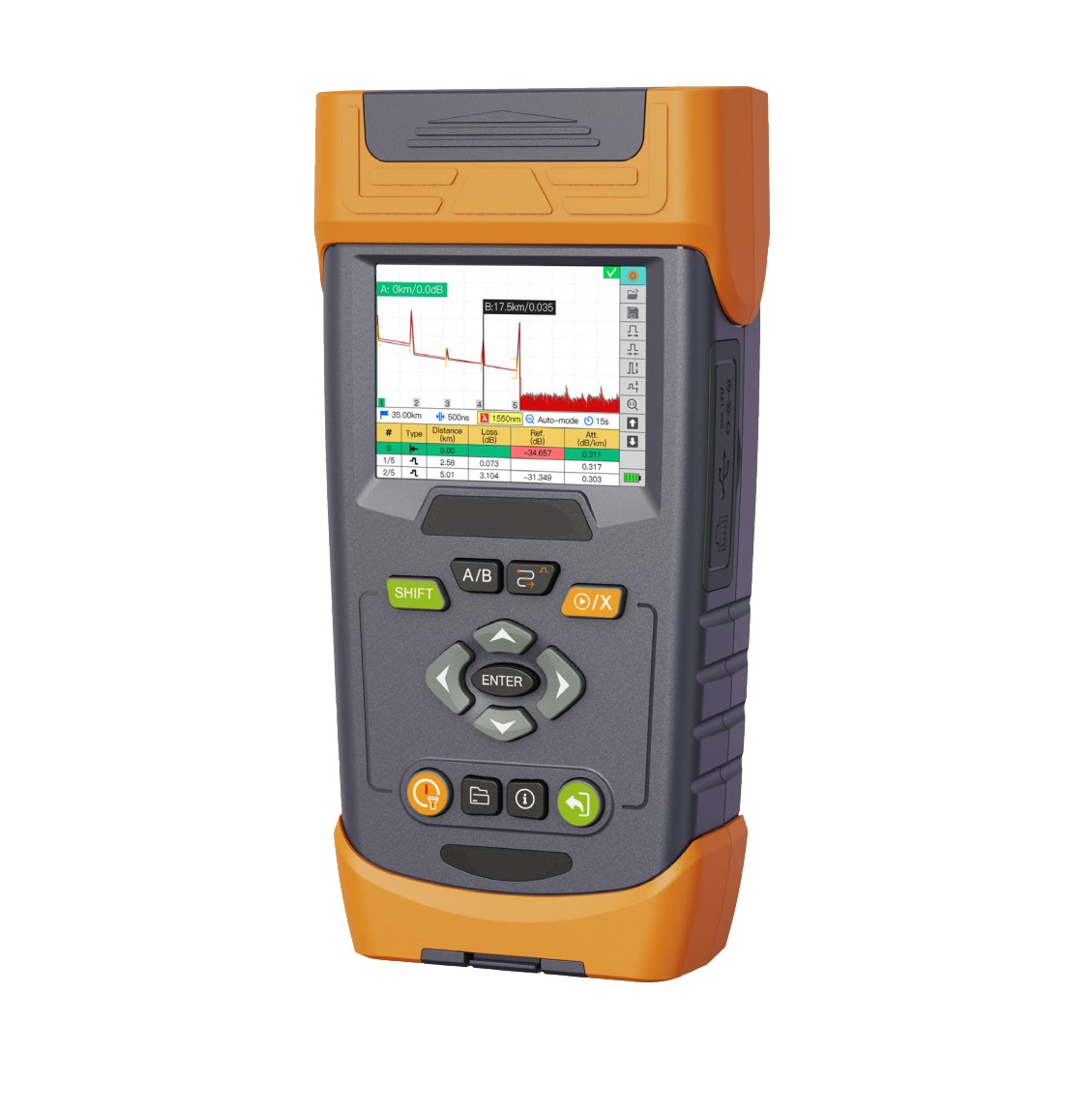

The VT-42LO is a handheld OTDR for testing, evaluating, and locating faults on single-mode fiber links. It supports access networks, transmission networks, and FTTx/PON applications, including testing through optical splitters.
With 1310/1550/1625 nm wavelengths, a maximum dynamic range of 32 dB, and Link Map functionality, the VT-42LO helps technicians visualize fiber links, identify events, and assess measurement results in the field.
Feature
-
Multi-wavelength OTDR testing: Supports 1310, 1550, and 1625 nm, with a built-in filter as listed in the datasheet.
-
32/30/28 dB dynamic range: Corresponding to 1310/1550/1625 nm.
-
1 m event dead zone: Helps distinguish closely spaced events under the specified test conditions.
-
FTTx/PON testing through splitters: Suitable for installation, maintenance, and fault diagnosis.
-
Link Map and Pass/Fail: Displays a link diagram and measurement assessment.
-
3.5-inch color display: 640 × 480 resolution for viewing results.
-
Storage and analysis: Stores at least 1,000 traces internally and supports USB storage and PC analysis software.
-
Additional functions: OPM, optical light source, VFL, RJ45 testing, and fiber inspection probe modules are available depending on configuration.
Specifications
VT-42LO Handheld OTDR technical specifications
OTDR
| Item |
Specification |
| Model |
VT-42LO |
| Wavelength (nm) |
PON 1310/1550/1625 (built-in filter) |
| Dynamic range (dB) |
32/30/28 |
| Number of optical ports |
2 |
| Applicable fiber |
SM |
| Distance range (km) |
0.5, 1, 2, 5, 10, 20, 35, 50, 75, 100, 150, 200 |
| Pulse width (ns) |
5, 10, 20, 50, 100, 200, 500, 1000, 2000, 10000, 20000 |
| Event dead zone*¹ (m) |
1 |
| Attenuation dead zone*² (m) |
3.5 |
| Number of sampling points |
Max. 80000 |
| Sampling resolution |
Min. 0.04 m |
| Distance accuracy |
±(0.75 m + Measurement distance × 2 × 10⁻⁵ + Sampling resolution) |
| Loss accuracy |
±0.03 dB/dB |
| Reflection accuracy |
±2 dB |
LS
| Item |
Specification |
| Wavelength (nm) |
1310/1550 |
| Output power |
≥ −10 dBm |
| Modulation frequency |
CW, 270 Hz, 1 kHz, 2 kHz |
| Laser safety rating |
Class 1M or Class 1 |
| Optical input port |
OTDR port |
VFL
| Item |
Specification |
| Wavelength (nm) |
650 |
| Output power |
10 mW |
| Modulation mode |
CW, CHOP (2 Hz) |
| Laser safety rating |
Class 3R |
| Optical fiber interface |
2.5 mm universal connector for FC, SC, ST |
RJ45
| Item |
Specification |
| Applicable network cable |
CAT5, CAT6 |
| Distance of Cable Collationl |
300 m |
| Distance of emitting signal |
300 m |
General parameters
| Item |
Specification |
| Link diagram |
√ |
| Pass/Fail display |
√ |
| Distance unit |
m, km, mile, ft, kft |
| PC analysis software |
√ |
| Language |
English, Español, Chinese, Português, Français, Русский |
| Optical connector |
SC/APC |
| Display screen |
3.5-inch color TFT LCD (Resolution: 640 × 480) |
| Interface |
Charge port × 1, USB 2.0 × 3, RJ45 × 2 |
| Operating temperature |
−10 to 50°C; 0 to 40°C when the AC adapter is used; 0 to 35°C when the battery is charged |
| Storage temperature |
−20 to 60°C |
| Elevation |
4000 m |
| Humidity |
0 to 90% RH (20 to 90% with 739874 AC adapter, non-condensing) |
| Power supply mode |
100–240 V AC, 50/60 Hz (AC adapter) |
| Battery |
3000 mAh |
| LED light illumination |
≥15000 mcd |
| Working hours*³ |
5 hours |
| Data storage |
Internal storage: ≥1000 waveforms; external storage: USB memory |
| Dimensions |
118 mm (W) × 218 mm (H) × 55 mm (D) |
| Weight |
Approx. 0.73 kg (including internal battery and protectors, excluding OTDR unit and options) |
Notes
-
Minimum pulse width, return loss: ≥55 dB (≥40 dB for 850/1300 nm), group refractive index: 1.5, at 1.5 dB below the unsaturated peak level.
-
Minimum pulse width, group refractive index: 1.5, at a point where the backscatter level is within ±0.5 dB of the normal level. For SMF at 1310 nm, return loss: ≥55 dB.
-
New battery.
All specifications are valid at 23°C ±2°C (73.4°F ±3.6°F) unless otherwise specified.
