Overview

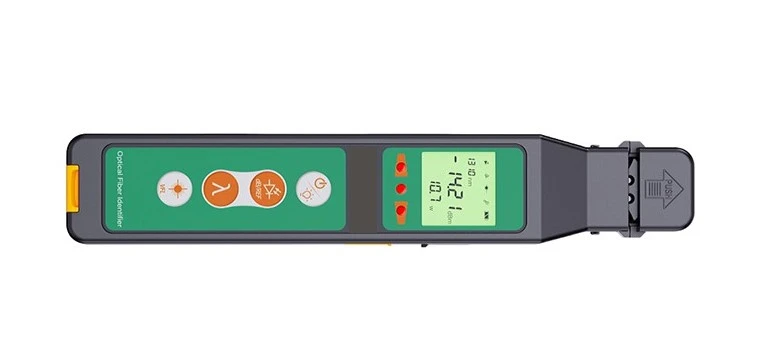

The VT-42OFI-A is a handheld instrument combining optical fiber identification, an Optical Power Meter (OPM), and a Visual Fault Locator (VFL) for fiber network inspection, installation, and maintenance.
It supports 0.25/0.9/2.0/3.0 mm fiber diameters without changing chucks. An LED light and backlit display support convenient operation in low-light environments.
Feature
-
Three integrated functions: Fiber identification, optical power measurement, and visual fault location.
-
Automatic signal recognition: Supports CW, 270 Hz, 1 kHz, and 2 kHz.
-
Signal direction indication: Left and right LEDs indicate signal direction.
-
No chuck replacement required: Supports 0.25, 0.9, 2.0, and 3.0 mm fiber diameters.
-
10 mW VFL: Operates at 650 nm, with a testing distance of 5–8 km as specified in the datasheet.
-
Integrated OPM: Supports multiple standard wavelengths for optical power measurement.
-
Convenient field operation: Handheld design, two AA batteries, and an LED light.
Specifications
| Item |
Specification |
| Model |
VT-42OFI-A |
| Wavelength recognition range |
850–1625 nm |
| Signal recognition type |
CW, 270 Hz ±5%, 1 kHz ±5%, 2 kHz ±5% |
| Detector type |
φ 1 mm InGaAs, 2 pcs |
| Adapted fiber type |
φ 0.25 mm, φ 0.9 mm, φ 2.0 mm, φ 3.0 mm |
| Signal direction |
Left & Right LED |
| Optical power reading range |
−40 dBm to 10 dBm |
| Signal frequency range |
270 Hz, 1 kHz, 2 kHz |
| Power type |
AA batteries × 2 |
| Operating temperature range |
−10°C to 60°C |
| Storage temperature range |
−25°C to 70°C |
| Return loss |
≥60 dB |
| Dimensions/weight |
219 × 45 × 28 mm / 235 g |
VFL function
| Item |
Specification |
| Power range |
10 mW |
| Testing distance |
5–8 km |
| Wavelength range |
650 nm |
| Laser type |
LD |
| LED light |
Yes |
OPM function
| Item |
Specification |
| Wavelength range |
800–1700 nm |
| Optical power testing range |
−70 to +6 dBm / −50 to +26 dBm |
| Standard wavelengths |
850/980/1300/1310/1490/1550/1625 nm |
| Interface |
2.5 mm universal interface |
| Detector type |
InGaAs |
| Display |
3.5-inch color high-resolution display, 800 × 480 |
| Display resolution |
0.01 dB |
| Accuracy |
±0.2 dB |
